Covalent Bonding
Category: 3D-Model
Subjects: Chemistry
Tags: None
Created with: OpenSCAD
Language: English
Author: Sarah Hayman
Description

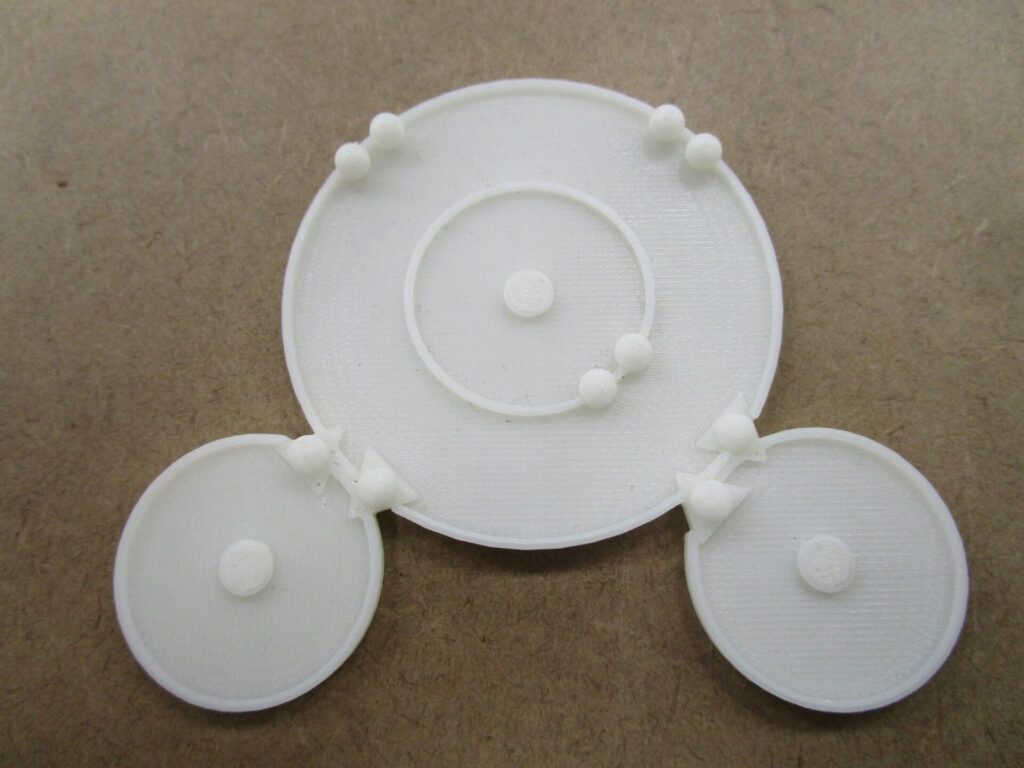

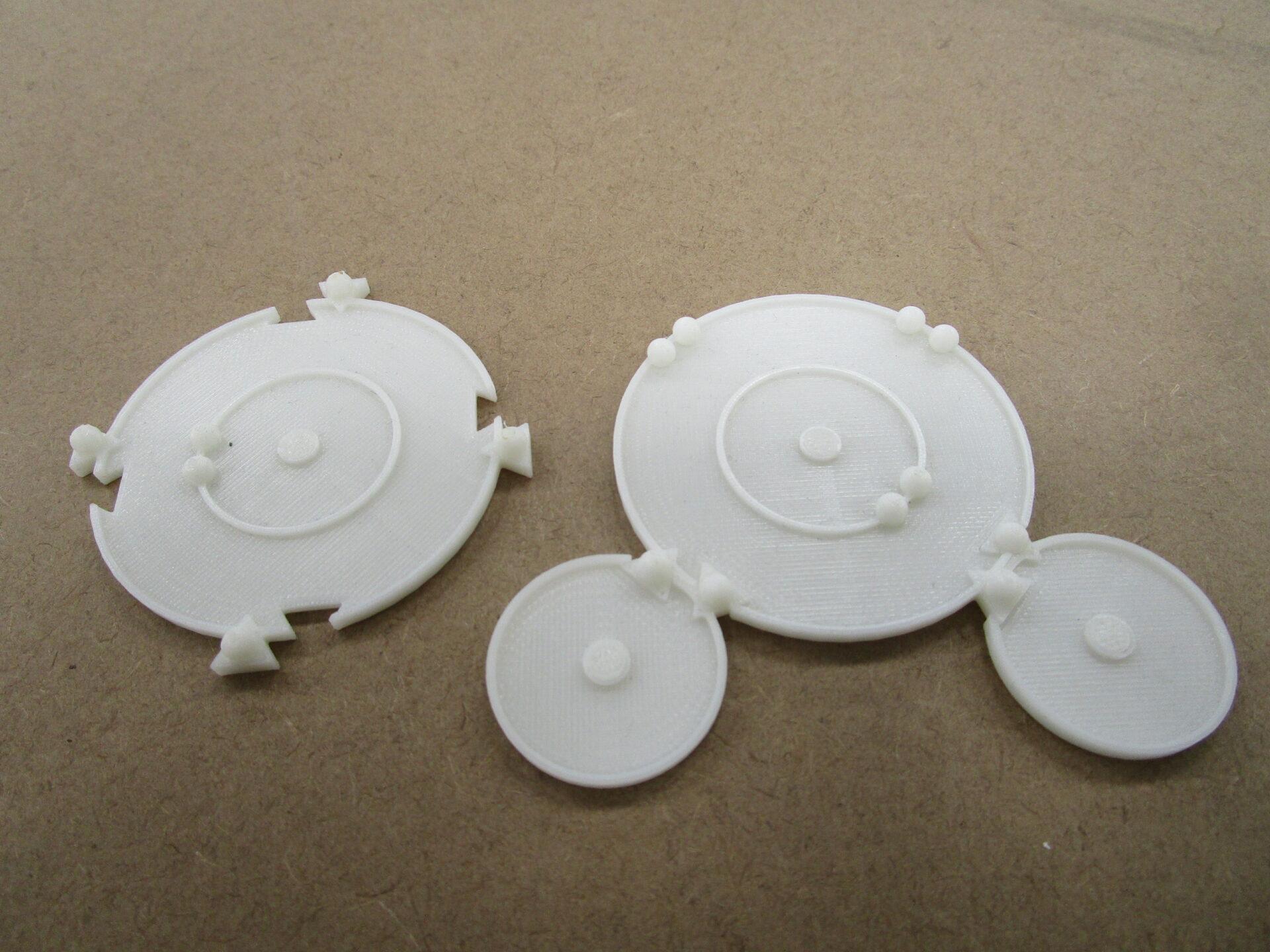

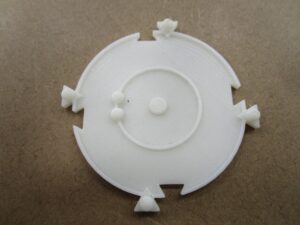

This is a kit for modelling covalent bonding. Electrons are represented by spheres, in pairs. The nucleus is represented as a cylinder/circle in the middle of the model. The models can be attached like puzzle pieces, demonstrating the ‘sharing’ of electrons that occurs in a covalent bond. Add a braille and print label to the back to identify the element. Recommend 6 x Hydrogens, 2 x Fluorines, 2 x Chlorines, 2 x Carbon and 1 x Oxygen to make a kit. Does not demonstrate double bonds.
Printing instructions and tips
Layer height: 0.19 Infill: 10% Support: Not needed Material: PLA The connections could be tight at first, try attaching and unattaching to smooth them out.
Downloads
- Hydrogen – Covalent bond (STL)
- Fluorine – Covalent bond (STL)
- Chlorine – Covalent bond (STL)
- Carbon – Covalent bond (STL)
- Oxygen – Covalent bond (STL)
📦 Download All Assets (.zip)
Bundle of all files listed above.
