3D Shape Nets
Category: 3D-Model
Subjects: Mathematics
Tags: None
Created with: Unspecified
Language: English
Author: Sarah Hayman
Description

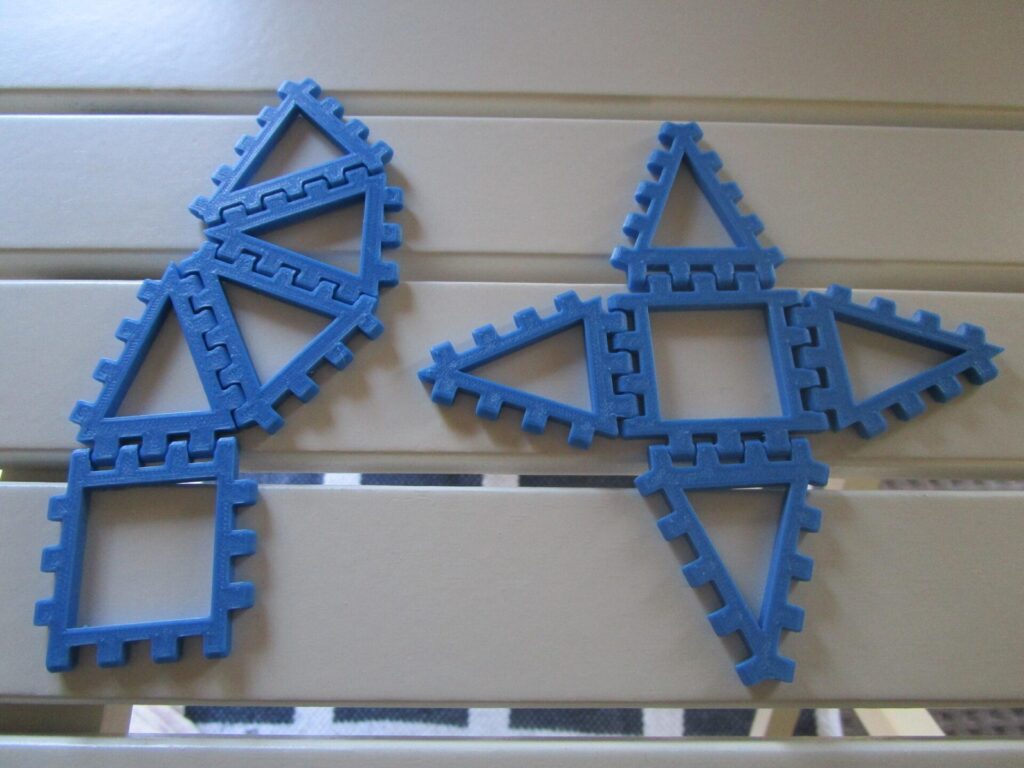

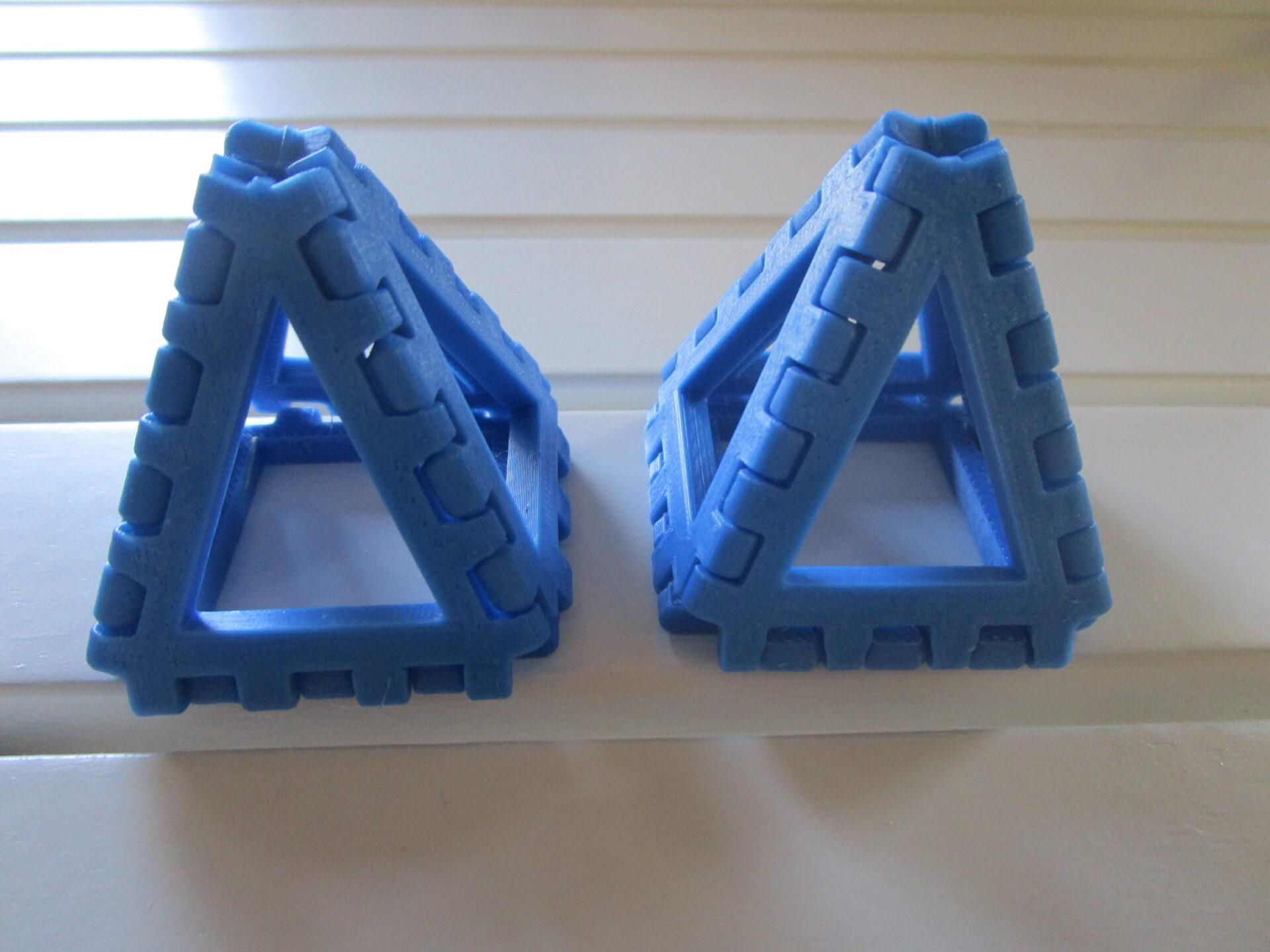

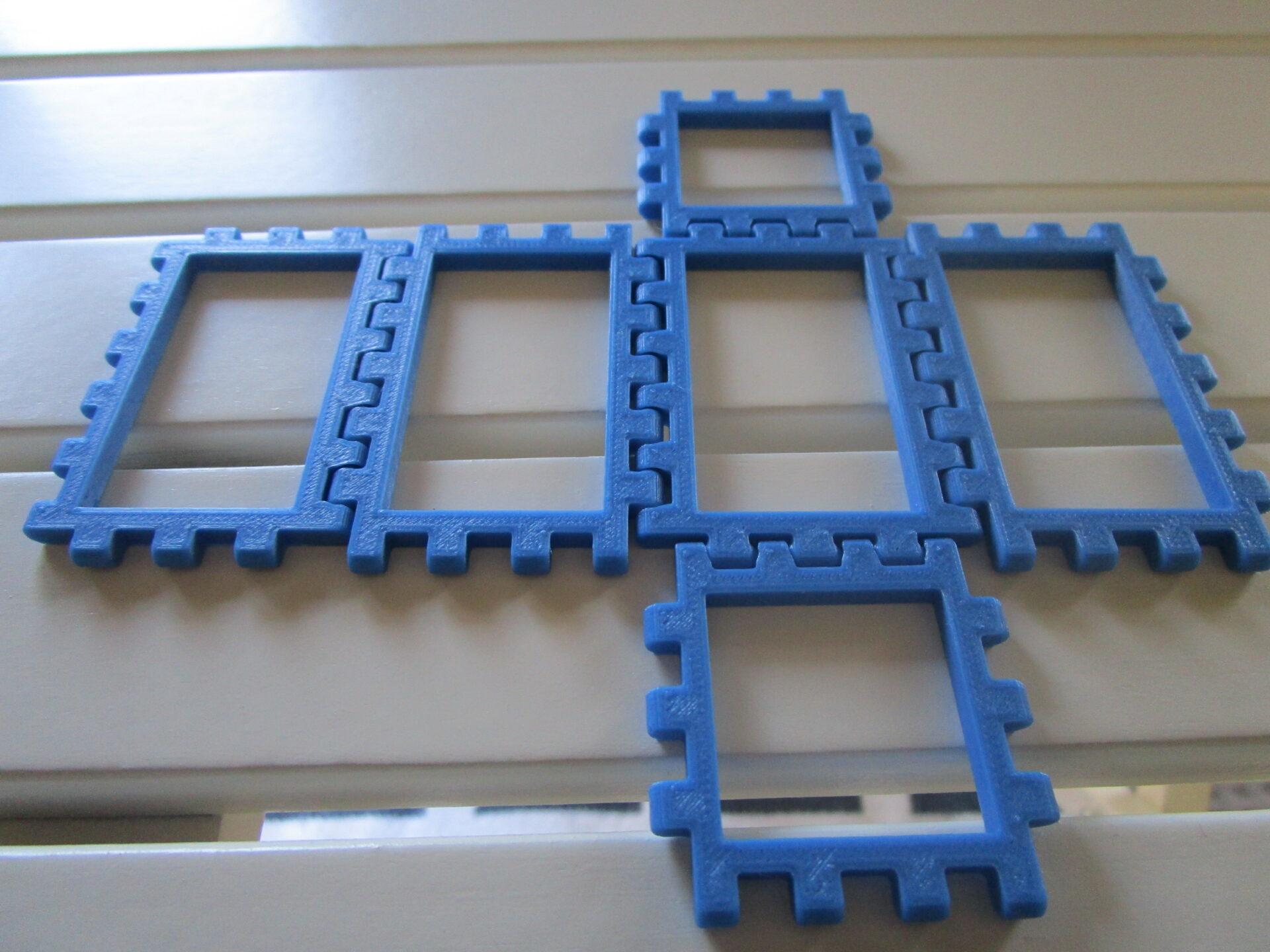

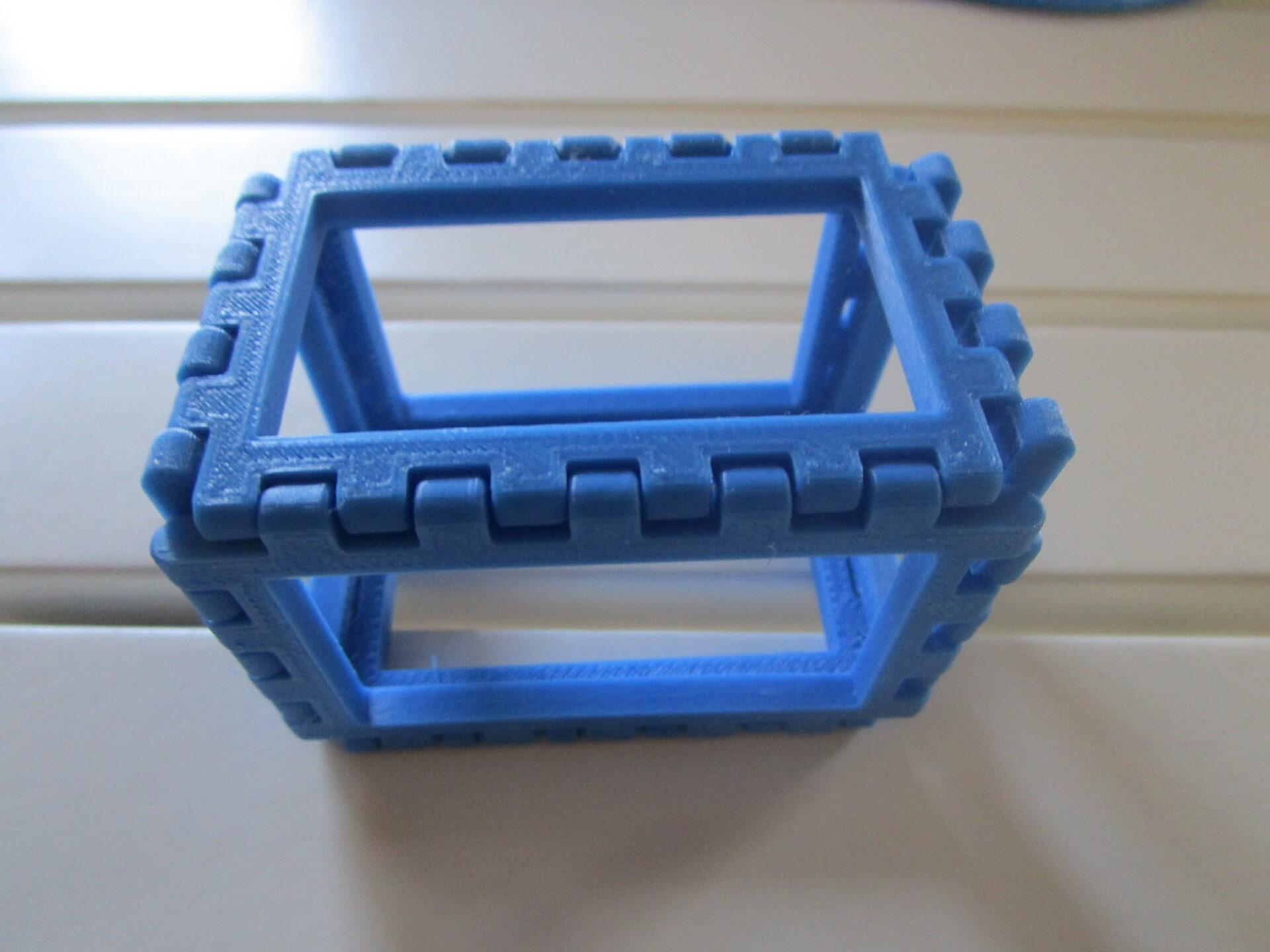

Nets of common 3D shapes. Joints are hinged with interlocking teeth on other edges. There are multiple versions of the cube and square based pyramid to demonstrate that the same shape can be made from two very different nets. Also one ‘not’ net for each to show that not all combinations of those faces create that shape. Nets include 3 x Cube and one ‘not’ cube 2 x Square Based Pyramid and one not pyramid Rectangular Prism Triangular Prism Cylinder Demo of using the cylinder net Remixed from Polyhedra – Hinged Nets and Snap Tiles
Printing instructions and tips
Layer height: 0.19 Infill: 10% Support: None Material: PLA Estimated Printing Time for Cube: 3 hr 13 min
Downloads
- Cylinder (STL)
- Triangular Prism (STL)
- Square based pyramid (STL)
- Square based pyramid not net (STL)
- Square based pyramid 2 (STL)
- Rectangular Prism (STL)
- Cube not net (STL)
- Cube net C (STL)
- Cube net B (STL)
- Cube net A (STL)
📦 Download All Assets (.zip)
Bundle of all files listed above.
