20 Sided Dice (normal font)
Description

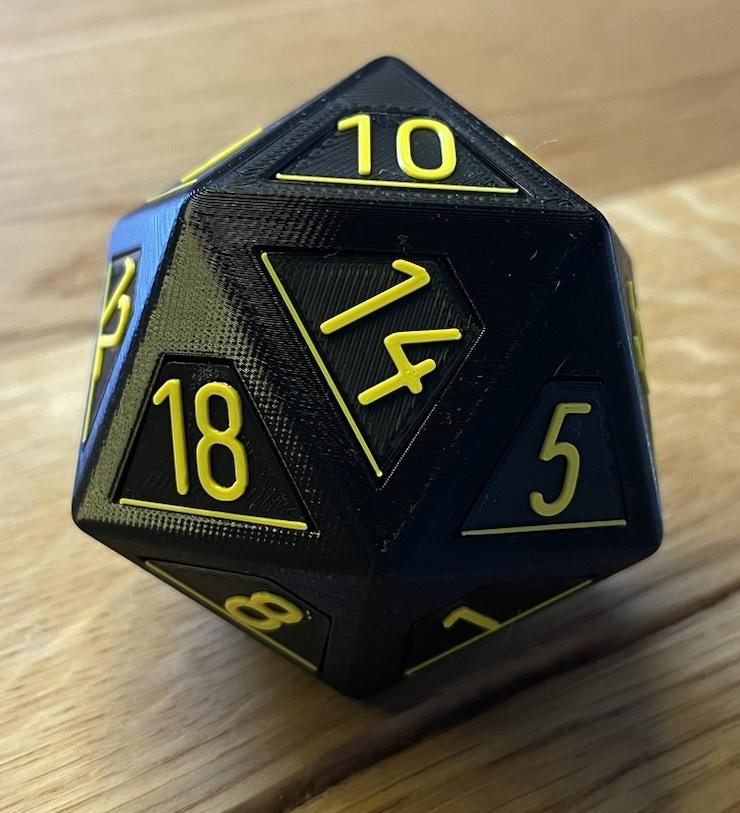

A 20-sided dice labelled with numbers from 1-20 in normal font. The numbers are printed separately on small plates (bicolor print with filament change recommended) and then glued to the dice itself with superglue. If coloured filament with a good contrast is chosen, then visually impaired students can read the numbers well. Printed model of the designer This model was designed and tested as part of the 3D4VIP project.
Printing instructions and tips

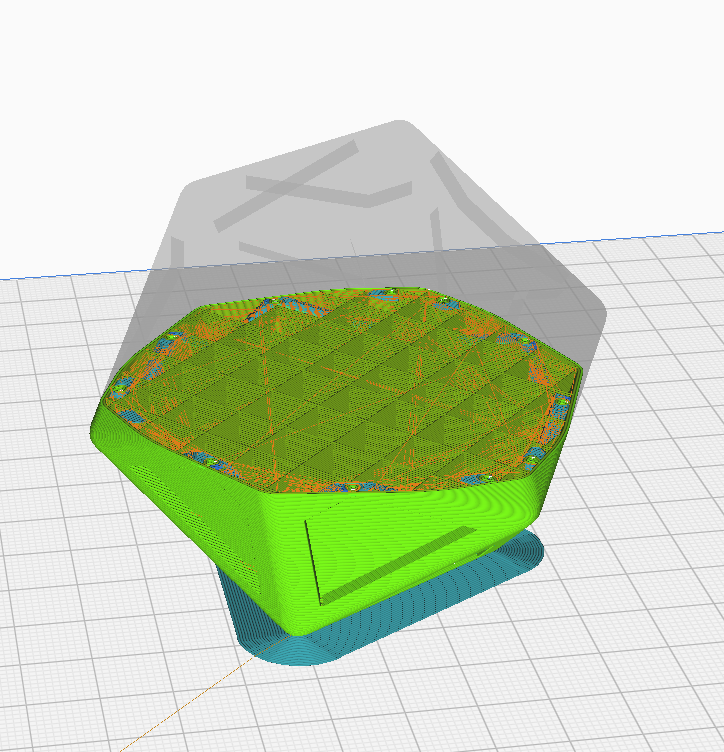

Dice The dice is printed in one part. Infill is necessary for the dice. A value of round about 4-5% is sufficient, whereby more infill contributes to a more stable dice and better rolling behaviour. Support structure isn’t necessary. At a layer height of 0.15mm, the dice looks very good and overhangs print well. Layer height: 0.15mm Walls: 2 Infill: 5% Speed: 50mm Build plate adhension: brim Material used: 28g Duration: 3:47h Labels The plates are arranged flat on the print bed and can all be printed simultaneously. To get the plates to be bicolor at the end, it requires a colour change for printers with only one printhead. Instructions for Cura can be found in the Guidelines in Article 5 . If you print the first layer with 0.3mm and then each further layer with 0.1mm, you have to set the colour change for layer number 14. Take care that the prints do not have an elephant foot!
Downloads
- D20_tile20_normal (STL)
- 20 sided dice_normal (SKP)
- D20_tile19_normal (STL)
- D20_tile18_normal (STL)
- D20_tile17_normal (STL)
- D20_tile16_normal (STL)
- D20_tile13_normal (STL)
- D20_tile14_normal (STL)
- D20_tile15_normal (STL)
- D20_tile12_normal (STL)
- D20_tile11_normal (STL)
- D20_tile10_normal (STL)
- D20_tile9_normal (STL)
- D20_tile8_normal (STL)
- D20_tile7_normal (STL)
- D20_tile6_normal (STL)
- D20_tile5_normal (STL)
- D20_tile3_normal (STL)
- D20_tile4_normal (STL)
- D20_tile2_normal (STL)
- D20_tile1_normal (STL)
- Dice_20 (STL)
- d20_preview_not for printing (3MF)
Bundle of all files listed above.
