Description

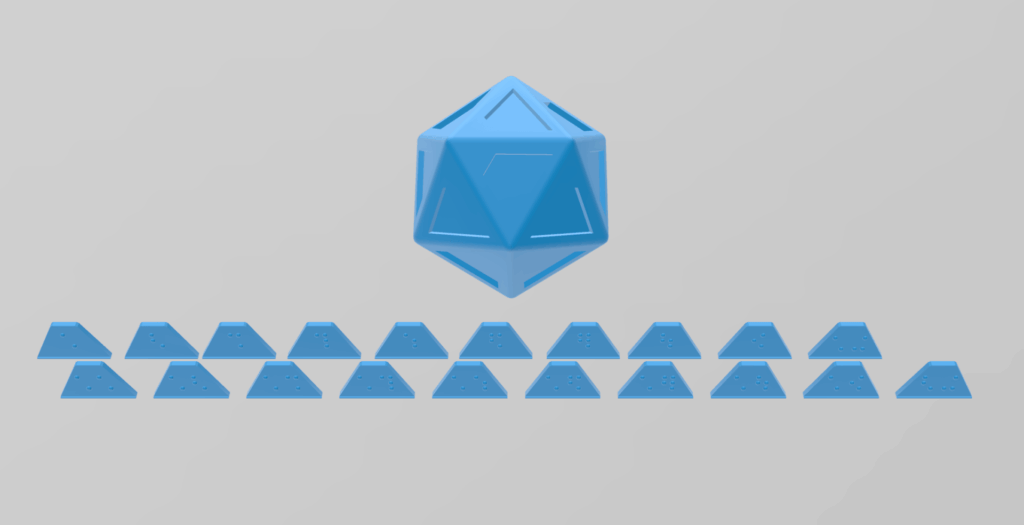

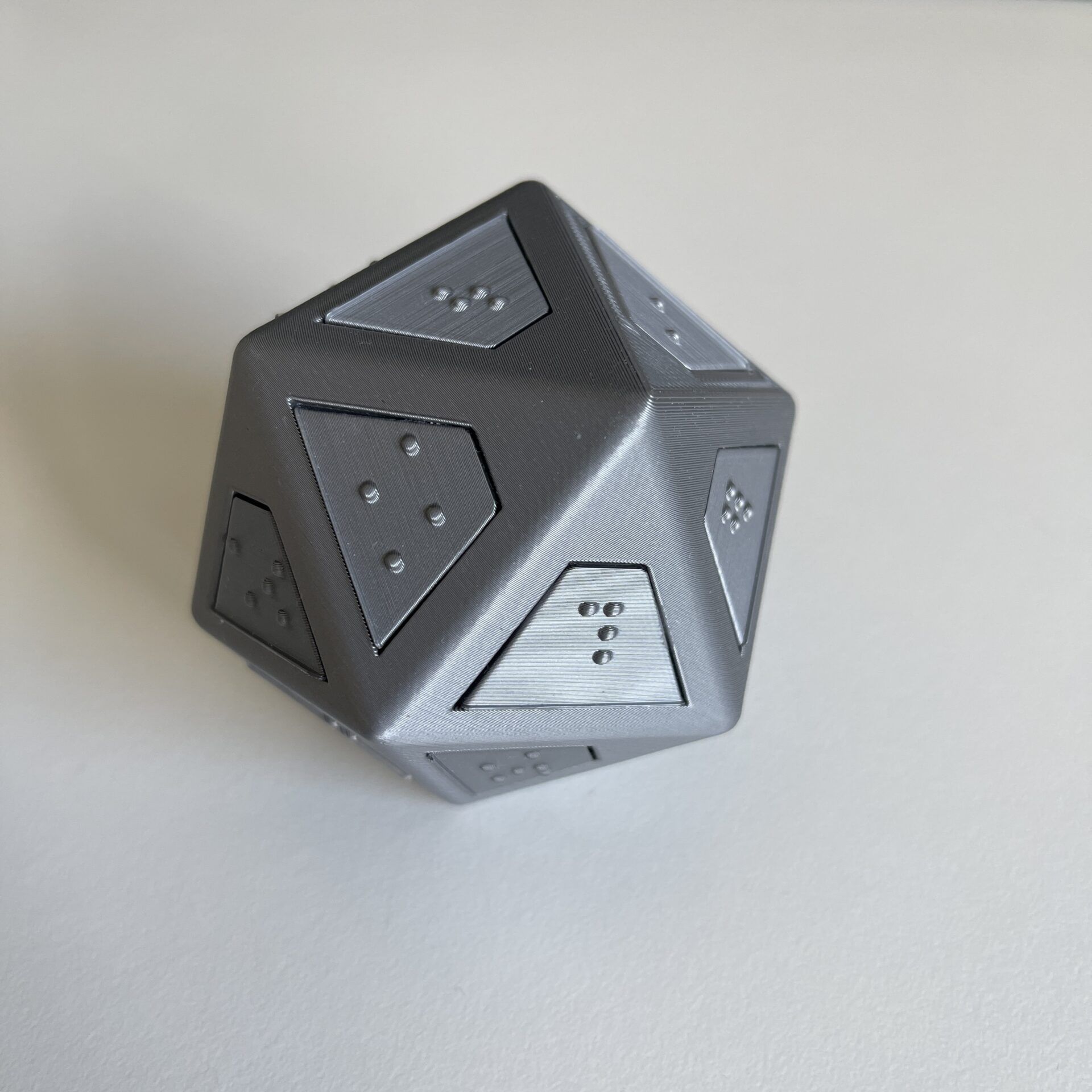

A 20-sided dice labelled with numbers from 1-20 in Braille. The numbers are printed separately on small plates and then glued to the dice itself with superglue. The plates are labelled in 8 point Braille. The 20 sided dice is used, for example, when practising calculation skills in the lower classes. But there are also some board games, which require such a dice. Printed model of the author
Printing instructions and tips

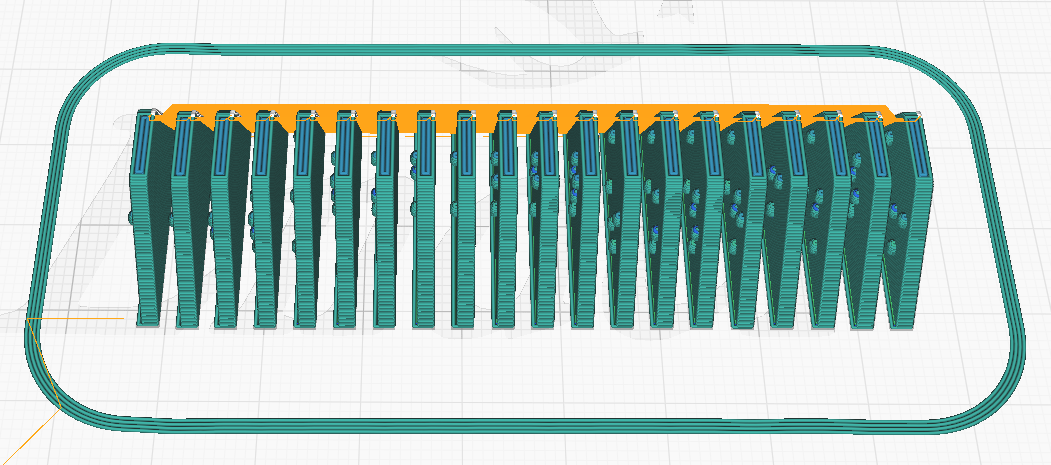

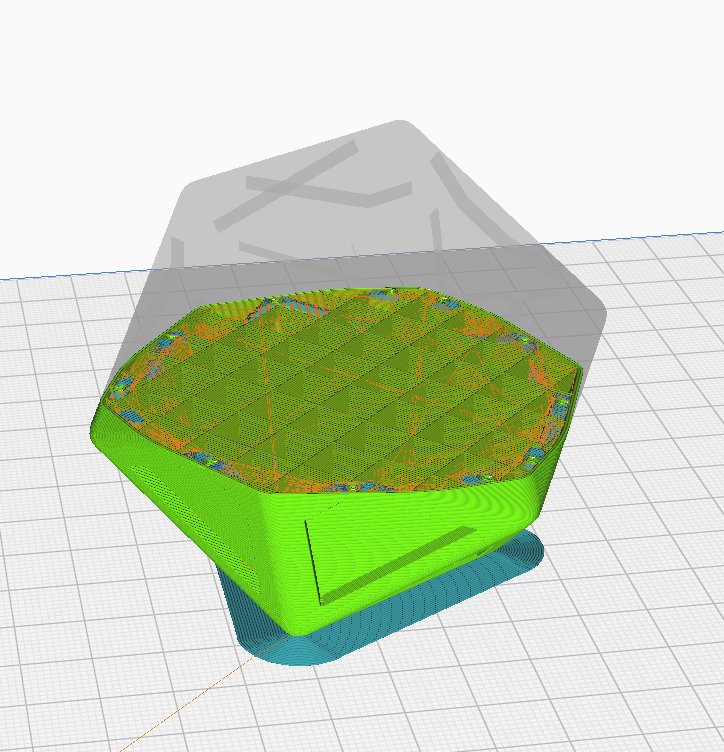

Dice The dice is printed in one part. Infill is necessary for the dice. A value of round about 4-5% is sufficient, whereby more infill contributes to a more stable dice and better rolling behaviour. Support structure isn’t necessary. At a layer height of 0.15mm, the dice looks very good and overhangs print well. Plates Take care that the tiles don’t have an elephant foot. You should print them upright (0.15mm layer height). Depending on the printer and levelling of the buildplate, you may need a brim. Print setting of the creator Printed with Ender 3 S1-pro running klipper via Sonic Pad Slicer: Cura 5.1.0 Dice Layer height: 0.15mm Walls: 2 Infill: 5% Speed: 50mm Build plate adhension: brim Material used: 28g Duration: 3:47h Plates Layer height: 0.15mm Walls: 2 Speed: 40mm Build plate adhension: Skirt Material used: 12g Duration: 1:30h
Downloads
- Main Asset (D20_all-tiles_8dot.stl)
- 20 sided dice (SKP)
- D20_all-tiles_8dot (STL)
- D20_tile20_8dot (STL)
- D20_tile19_8dot (STL)
- D20_tile18_8dot (STL)
- D20_tile17_8dot (STL)
- D20_tile16_8dot (STL)
- D20_tile15_8dot (STL)
- D20_tile14_8dot (STL)
- D20_tile13_8dot (STL)
- D20_tile12_8dot (STL)
- D20_tile11_8dot (STL)
- D20_tile10_8dot (STL)
- D20_tile9_8dot (STL)
- D20_tile8_8dot (STL)
- D20_tile7_8dot (STL)
- D20_tile6_8dot (STL)
- D20_tile5_8dot (STL)
- D20_tile4_8dot (STL)
- D20_tile3_8dot (STL)
- D20_tile2_8dot (STL)
- D20_tile1_8dot (STL)
- Dice_20 (STL)
Bundle of all files listed above.
